Custom PC Injection Molding and Mold Manufacturing
Engineering support for custom polycarbonate molds and molded plastic parts
D-top Mould Co.,Ltd supports custom polycarbonate injection mold and molded-part projects for overseas customers. Our engineering review can cover part geometry, PC grade, wall thickness, ribs and bosses, gate position, venting, cooling, ejection, appearance and dimensional requirements.
PC processing is sensitive to material condition, part design and molding parameters. We therefore confirm the resin data, application, quantity, critical dimensions and validation requirements before recommending the mold structure or production approach.
Typical applications include automotive lighting and housings, electrical and electronic components, industrial covers, transparent parts and other custom products. Suitability is reviewed for each drawing and resin grade.
PC Material and Design Considerations

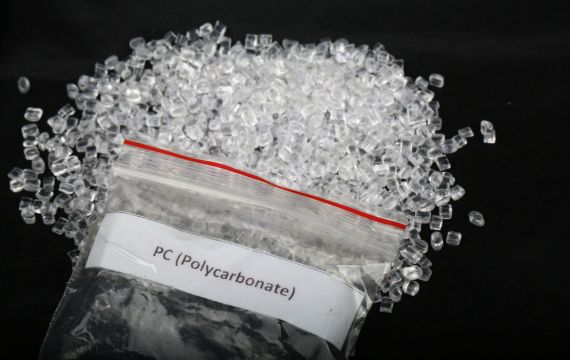

Polycarbonate is selected for projects that need impact resistance, dimensional stability, electrical insulation or transparency. Available grades vary in flow, UV resistance, flame-retardant formulation, color and reinforcement.
- Confirm the exact resin grade and supplier data sheet.
- Use consistent wall thickness and gradual transitions where possible.
- Review ribs, bosses, sharp corners and stress concentration.
- Plan gate, venting and ejection to protect appearance and dimensions.
- Define whether recycled content, color matching or optical appearance is required.
Material performance and molding settings are grade-specific, so values are confirmed from the approved resin data rather than treated as universal PC parameters.

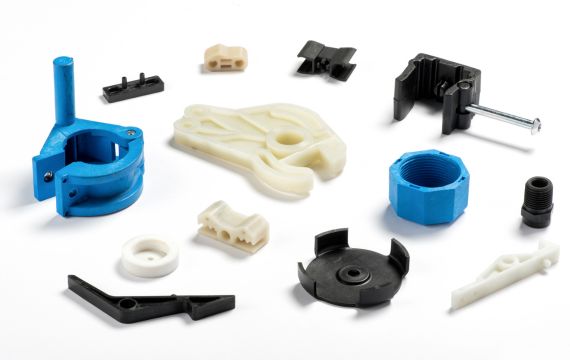

PC Injection Molding Applications
Custom PC injection molding can support a range of applications when the selected grade meets the product environment and regulatory requirements.

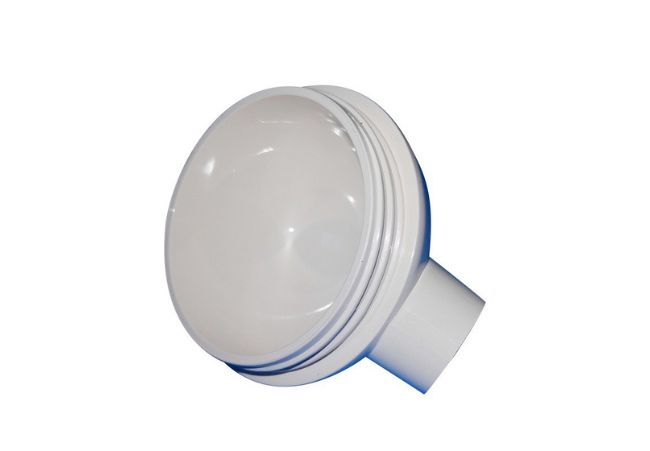

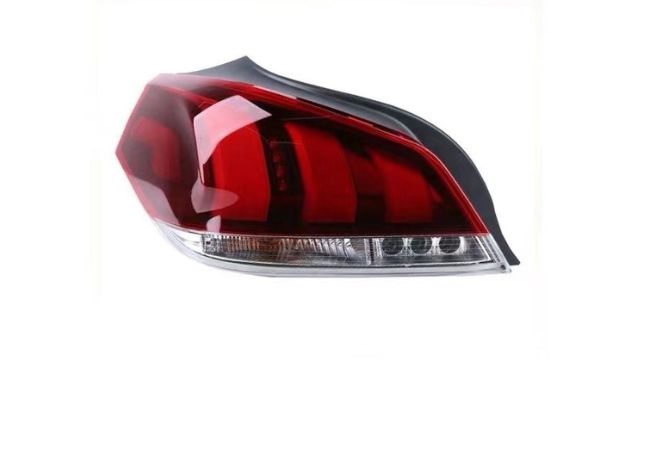

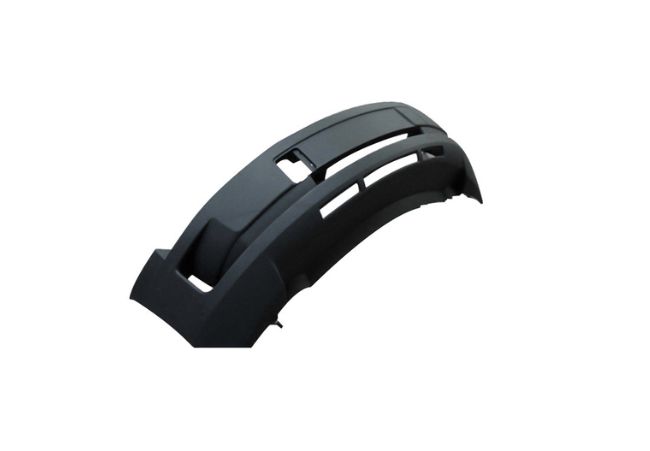

- Automotive: lighting components, covers, housings and interior technical parts.
- Electrical and electronics: insulating components, protective housings and transparent covers.
- Industrial products: guards, enclosures, windows and impact-resistant components.

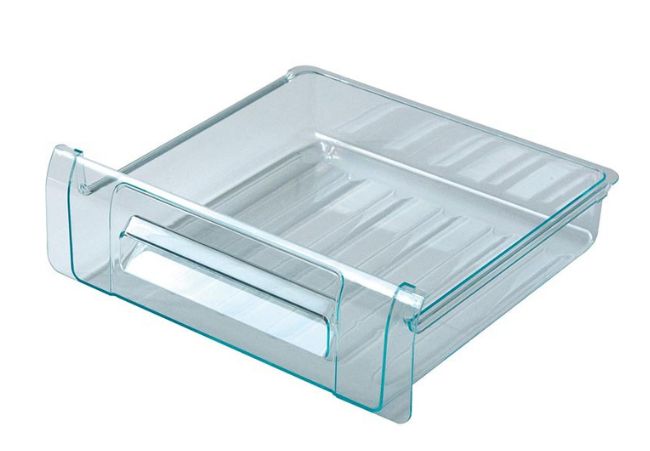

- Consumer products: clear, colored or durable plastic parts with defined appearance requirements.
D-top Mould reviews the drawing, resin, operating conditions, appearance and validation requirements before confirming manufacturability.
PC Injection Mold Manufacturing and Validation Process

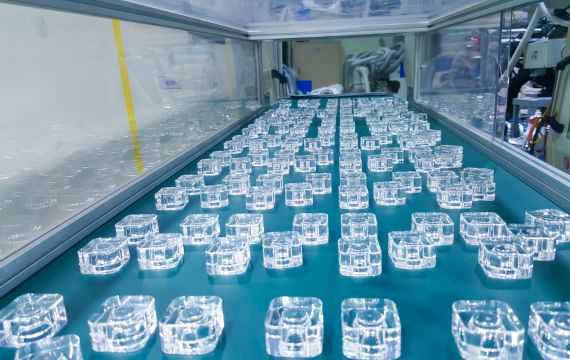

A PC molding project normally progresses through engineering review, tooling and validation:
- Review 2D/3D data, resin grade, quantity, surface and critical dimensions.
- Prepare DFM feedback covering wall thickness, draft, gates, vents, parting lines and ejection.
- Confirm mold steel, cavity count, runner system and validation scope.
- Machine, fit and assemble the mold, then conduct mold trials.
- Review samples for filling, appearance, dimensions and agreed functional requirements.
- After approval, support molded-part production, secondary operations, assembly and packaging when included in the order.
Trial conditions and acceptance documents are agreed for each project; no fixed lead time applies to every mold.
Related PC Injection Molding Resources
PC Injection Molding Challenges and Quality Controls
Polycarbonate parts can show splay, bubbles, flow marks, sink, warpage, internal stress or surface damage when the design, material condition, tooling or process is unsuitable. Control begins before production:
- Review resin drying and handling instructions from the material supplier.
- Use DFM analysis to identify wall-thickness changes, stress concentration and difficult ejection.
- Evaluate gate location, runner balance, venting and cooling before mold completion.
- Define appearance zones, critical dimensions and inspection methods on the drawing.
- Conduct mold trials and record required corrections before sample approval.
Moldflow analysis can be used when required to evaluate filling, weld lines, air traps, pressure, shrinkage and potential warpage. The analysis and validation scope are confirmed for each project.
What Is Required for a PC Injection Molding Quote?
Please provide available 2D and 3D files, the exact PC or PC-blend grade, color, expected order or annual quantity, appearance requirements, critical dimensions, application environment and target schedule. If the resin has UV, flame-retardant, glass-fiber or optical requirements, include the supplier data sheet and applicable specifications.
Request a Quote Send Your 3D Drawing
Please send available 2D and 3D files, the exact PC or PC-blend grade, color, expected quantity, appearance requirements, critical dimensions, application conditions and target schedule. We will identify any missing information needed to review tooling, molding and validation scope.
Risk reduction starts with the approved resin data, part design and mold design. We review wall thickness, radii, gates, vents, cooling and ejection, then evaluate trial samples and molding conditions. Required dimensional or appearance checks are agreed for each project; the corrective approach depends on the actual part and PC grade.
